D. OfficeMaster Suite configuration

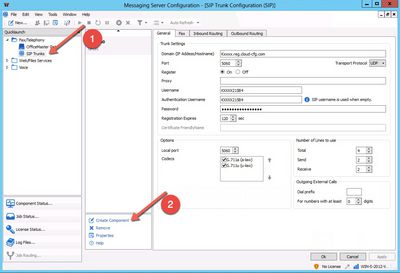

- Start the OfficeMaster Suit.

- Select "SIP Trunks".

- Select then "Create Component" in order to create a new SIP trunk.

csm_OMS_1_54edc25858

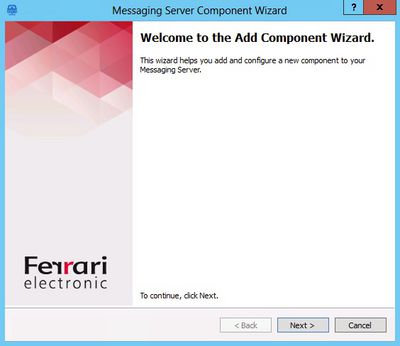

- Click on "Next".

csm_OMS_2_592c20649b

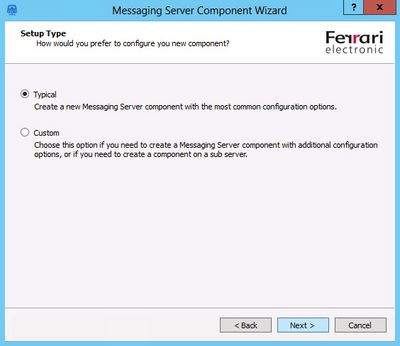

- Select "Typical“ and click on "Next".

csm_OMS_3_136bcec067

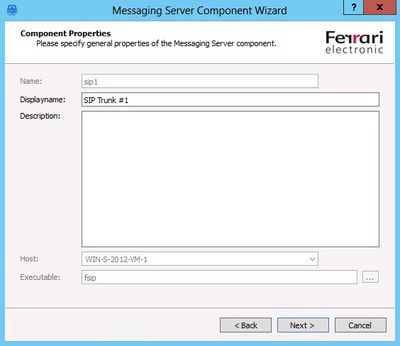

- Choose a display name and a description. Both are freely selectable.

- Click on "Next".

csm_OMS_4_1b44ff98fa

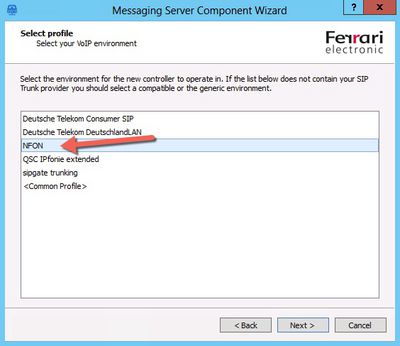

- For NFON, select the NFON profile. The configuration will be set automatically.

- Click on "Next".

csm_OMS_6_3bba75be28

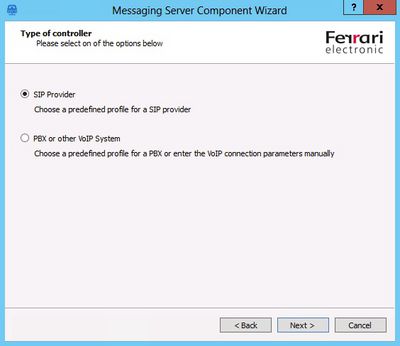

- Select "SIP provider".

csm_OMS_5_f067b81af6

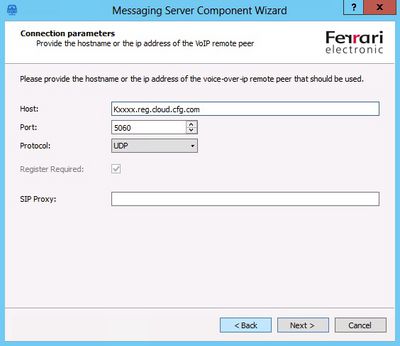

- Enter the data that you have received from NFON.



Host: consists of you K number and reg.cloud-cfg.com for example (KAXXX.reg.cloud-cfg.com).



Port: 5060

Protocol: UDP

SIP proxy: empty



- Click on "Next".

csm_OMS_7_83efe977ff

- Enter further data XCAPI device data.



User: SIP User

User (Auth.): SIP User

Password: SIP Passwort

Registration intervall: 120



- Click on "Next".

csm_OMS_8_543308ddc9

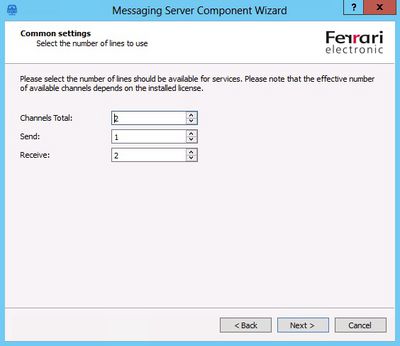

- Enter the total number of lines and the number of lines to be used for sending and receiving.

csm_OMS_9_d68af86f3b

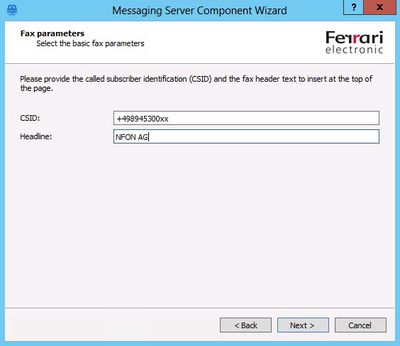

- Enter your CSID and the header.

- Click on "Next".

csm_OMS_10_6dfb3b7c2a

- To complete the setup, click on "Finish".

csm_OMS_11_a43483c591

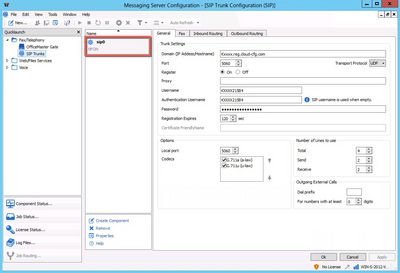

- You have successfully set up the connection.

csm_OMS_12_9a479c79d8
