1.1. Overview of keys

snom D710/D712/D715


1

Telephone status

2 LED call indicator
3 Display
4 Soft keys
5 Confirm key
6 Navigation key
7 End key
8 VoiceMai key with LED
9 Freely programmable function keys with LEDs
10 Freely programmable function keys with LEDs
11 Speaker key with LED
12 Volume key
13 Mute key with LED / DND key when in idle mode
14 Alphanumeric keypad
15 Receiver microphone
16 Receiver speaker



csm_snom710_Tasten_im_UEberblick_01_aeb9295e94

snom D725


1 Telephone status
2 LED call indicator
3 Display
4 Soft keys
5 Confirm key
6 Navigation key
7 End key
8 VoiceMai key with LED
9 Freely programmable function keys with LEDs
10 DnD key (do not disturb)
11 Phone book key
12 Menu key
13 Transfer key
14 Hold key
15 Microphone for speaker function
16 Headset key with LED
17 Speaker key with LED
18 Volume key
19 Mute key with LED
20 Alphanumeric keypad
21 Receiver microphone
22 Receiver speaker



D725

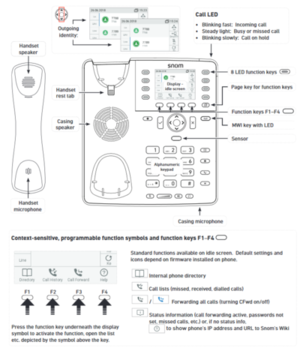

snom D735

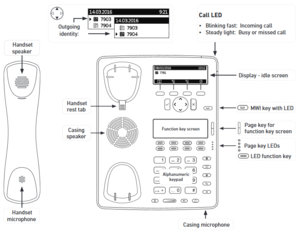

snom D745

snom D765


1 Display
2 LED call indicator
3 Not programmable line keys
4 Soft keys
5 Confirm key
6 Navigation key
7 End key
8 VoiceMai key with LED
9 Freely programmable function keys with LEDs
10 DnD key (do not disturb)
11 Phone book key
12 Menu key
13 Transfer key
14 Hold key
15 Microphone for speaker function
16 Headset key with LED
17 Speaker key with LED
18 Volume key
19 Mute key with LED
20 Alphanumeric keypad
21 Receiver microphone
22 Receiver speaker



D765

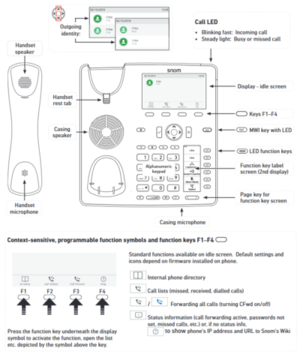

snom D785

Keys in detail:



Use the toggle key to browse through the display.

On the home screen:


Down: Settings
Up: Call lists

Confirms an action, selection or entry
Cancels an action, selection or entry
Mutes the microphone during a call
Adjusts the receiver volume or the ring tone volume
Hands-free mode (answering possible)
Headset mode
Access voicemail
Do not Disturb mode on / off. Extension works as in “Delayed call forwarding”.
Phone book (Set up via the administration portal)
Menu
Transfer call
Hold call
  Hold key on snom D735 and D785



LED indicators

Call LED*

  • Rapidly flashes red with an incoming call.
  • Continuous, bright red while dialling, during a call and when a call is placed on hold.
  • Continuous somewhat less intensive red indicates a missed call.

Function keys LED

The standard setting is “Line”. I.e., if the first four freely programmable function keys are not programmed, the function keys with LEDs can be used as line keys.

  • Rapidly flashing green when the respective line has an incoming call.
  • Continuous green when the line is in use.
  • Slowly flashing green when the line has a call on hold

Voicemail LED

A continuous red light indicates a new message has been saved in voicemail.

*The LED indicator of snom 710 flashes solely in green color.
